Neodymium Pot Magnets

Neodymium Pot Magnets

Steel housed magnets are called pot magnets or cup magnets. Besides of protecting the inner magnets, the steel cups can transfer the magnetic line and make it into a magnetic circle. By this, the steel cup provides the magnets with more magnetic strength. Then the magnetic strength of whole magnet assembly is much more than equivalent round magnets. With more powerful magnetism, the pot magnets(mounting magnets) can hold more weight than just magnets not fixed into the steel cups. Pot magnets are the most common permanent magnets assemblies, they are results of the development of magnets application, and play important roles in daily life.

The common pot magnets are made of Neodymium(NdFeB) and ferrite(ceramic). NdFeB(neodymium) pot magnets are the strongest pot magnets for fishing, holding, clamping, hanging and mounting.

Neodymium Pot Magnets for Sale

Neodymium Pot Magnets for Sale
  • Countersunk Neodymium Pot Magnets
    Countersunk Neodymium Pot Magnets
    Neodymium pot magnet with a countersunk mounting hole can be fixed onto any where and used as strong holding magnet. The sizes of standard countersunk neodymium pot magnets range from 16mm to 75mm in diameter.
  • Counterbore Neodymium Pot Magnets
    Counterbore Neodymium Pot Magnets
    NdFeB pot magnets with cylindrical mounting hole is also known as counterbore neodymium pot magnets or neodymium shallow pot magnets. The standard size of such neodymium pot magnets range from 16mm to 75mm in diameter.
  • External Thread Neodymium Pot Magnets
    External Thread Neodymium Pot Magnets
    A neodymium disc magnet housed with a steel shallow pot with a male threaded mounting stud is called external or male threaded neodymium pot magnet. The size of male threaded stud ranges from M3 to M10.
  • Internal Thread Neodymium Pot Magnets
    Internal Thread Neodymium Pot Magnets
    A neodymium disc magnet encased in a steel shallow cup with a female threaded bushing is called internal or female threaded neodymium pot magnet. The size of female threaded bushing ranges from M3 to M10.
  • Neodymium Hook Magnets
    Neodymium Hook Magnets
    NdFeB pot magnet with a steel hook is neodymium hook magnet,neodymium hook magnets are the best solution of heavy duty magnetic hanging. Standard sizes of NdFeB hook magnets range from D16mm to D75mm.
  • Neodymium Eyebolt Magnets
    Neodymium Eyebolt Magnets
    The magnet assembly is composed of eyebolt,countersunk head screw and neodymium cup magnet with countersunk mounting hole.Such neodymium magnets with eyebolt can be used as salvage magnets.The diameter ranges from 20mm to 75mm.
  • Neodymium Magnets with Eyelet
    Neodymium Magnets with Eyelet
    The magnetic assembly of NdFeB cup magnet with a closed hook is shorted as neodymium magnets with eyelet.The pull force of standard eyelet neodymium magnets ranges from 5kgs to 160+ kgs. The neodymium magnet with eyelet are used for magnet fishing.
  • Channel Magnets
    Channel Magnets
    C-channel magnet(U-channel magnet) is a permanent magnetic assembly that composed of permanent magnet and a C/U-shaped steel cover.C/U channel magnets include neodymium and ferrite type,and used as holding mgnets,
  • Magnetic Tool Holders
    Magnetic Tool Holders
    Magnetic tool holder(also called magnetic tool bar) provide a solution for magnetic storage and organizing,it has strong magnetic holding force.By using magnetic tool holder,you can save much time on finding the tools you need.
  • Neodymium Shallow Pot Magnets
    Neodymium Shallow Pot Magnets
    A neodymium disc magnet covered with a flat shallow steel cup,such neodymium cup magnets are known as mono pole magnets and used as strong clamping magnets.We have wide select range for the neodymium cup magnets.
  • Flat Neodymium Pot/Cup Magnets with Threaded Hole
    Flat Neodymium Pot/Cup Magnets with Threaded Hole
    A ring NdFeB magnet housed with a flat steel cup with threaded bushing in the middle,the magnetic assemble is used as strong salvage magnet.The standard size range from 16mm to 75mm in diameter.

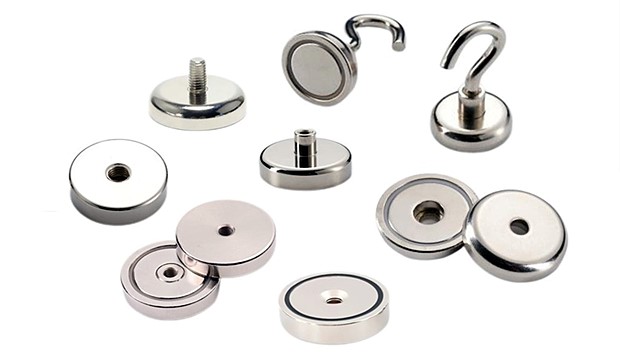

Types of Neodymium Pot Magnets & Mounting Magnets

According to needs, the steel cup of neodymium pot magnets can be made into different types, Meank magnetics often make the following types of neodymium pot magnets & mounting magnets:

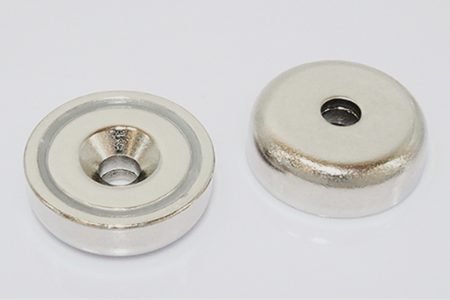

Type-A:  NdFeB(Neodymium)pot magnets with a countersunk(counterbore) mounting hole, a countersunk NdFeB magnet housed in a steel cup with a hole in the center.The hole let the magnets easy to be screwed on.Countersunk NdFeB pot magnet offer a magnetic base for magnet fishing.

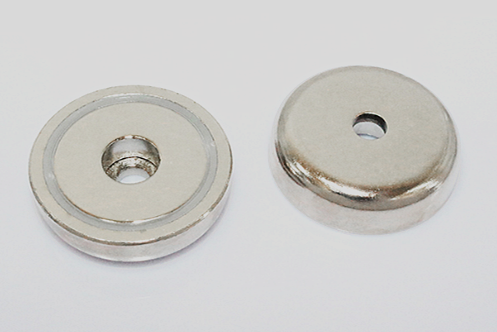

Type-BFlat neodymium shallow pot magnets with a cylindrical mounting hole, which composed of ring neodymium magnets and steel cups with a hole.This design makes it easy to be mounted.

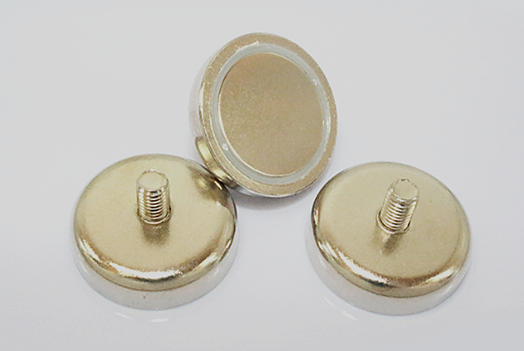

Type-C Strong mounting magnet composed of a disc neodymium magnet and steel cup that with an external(male) threaded stud. Which is called externally(male) thread neodymium pot magnets and neodymium pot magnets with external thread stud, the external thread magnets are strong enough for holding

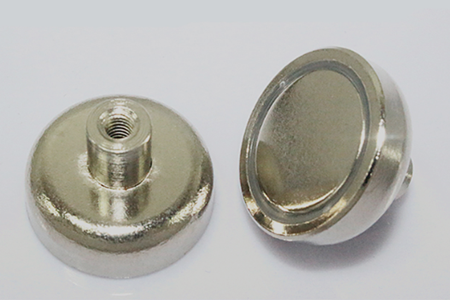

Type-D  Internal(female) thread neodymium pot(cup) magnets-cup magnet which composed of a disc neodymium magnet and steel cup with an internal threaded bush which make it easy to screw a hook or bolt on it.Female thread cup magnet is magnetic base for hook magnet.

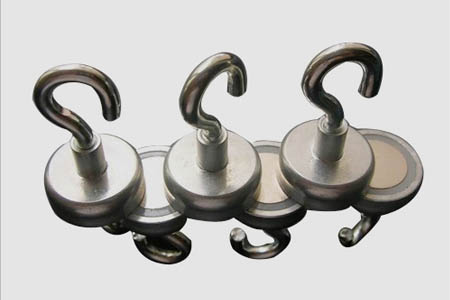

Type-E  Hook magnets or magnetic hooks. The disc neodymium magnet are affixed into a steel cup with an female threaded socket, The hook can be removed and replaced with eyelet and bolt. Strong neodymium magnetic hooks are used for heavy duty hanging.

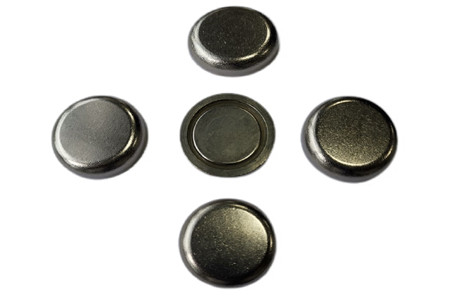

Type-U:  The steel shell is flat and without hole and threaded stem,which called flat neodymium shallow pot(cup) magnet, which used as strong holding&clamping magnets

Type-HFlat neodymium pot(cup) magnet with a threaded hole in the center,it can be used for mounting and fishing.

Applications of Meank Magnetics' Neodymium Pot & Mounting Magnets

Our neodymium pot magnets are used as search magnets to salvage metal objects from deep water.

Our neodymium mounting magnets  are used to mount lighting, exhibition equipment and other devices.

Our neodymium pot(cup) magnets can be used to hold and clamp the ceiling, signs, banners.

Our neodymium cup magnets can be used for heavy duty hanging.

Different Mounting Options for Pot Magnets

Countersunk pot magnets are magnets with mounting holes,they are mounted with countersunk head screw.You can mount a countersunk pot magnet onto wood door for holding.

External threaded pot magnets are mounted with nut,make a hole in the panel to be installed, the external screw stud passes through the hole, and screw on the nut on the other side of the panel.

Neodymium Pot Magnets

Advantages of Neodymium Mountable Magnets

Above types are just standard types of cut magnets we make, we can also make other types based on customers' designs. Our standard types of pot magnets for sale are made from neodymium strong magnets. All our neodymium pot magnets for sale have good market performance. Our company, a notable neodymium pot magnets supplier, a powerful magnets factory, will ensure our customers buy neodymium pot magnets that meet their needs.

To meet clients' needs on actual application conditions and cost control, we provide a different magnetic material choice on the magnets used for each type pot magnets. And also have wide range of size for choosing according to the need of holding force. If clients need very powerful magnetic strength and want to save cost, the ferrite pot magnets or ceramic pot magnets are perfect. If clients want very strong magnetic power, they can buy our neodymium pot magnets for sale. If clients used the pot magnets under the condition of higher temperature, then SmCo pot magnets can be used. In all, there must be one type suit for you.

FAQs about neodymium pot magnets:

FAQs about neodymium pot magnets:
  • Q.
    What materials make the best pot magnets?

    Neodymium material makes the best strong pot magnets while ferrite material make the best rust-resistant pot magnets.

  • Q.
    How to choose the most suitable pot magnet for your application?

    Choose countersunk pot magnet for magnetic holding on walls.

    Choose the pot magnet with external threaded stud for magnetic holding on plate.

    Choose the pot magnet with threaded socket for magnetic lifting.

  • Q.
    How does a pot magnet work?

    A pot magnet usually work with steel hook or rings.
